Laboratory Safety Chemical Fume Hood Vertical Application:FH series Fume hoods are the first defense to minimize chemical exposure to research workers. They are considered the primary means of protect

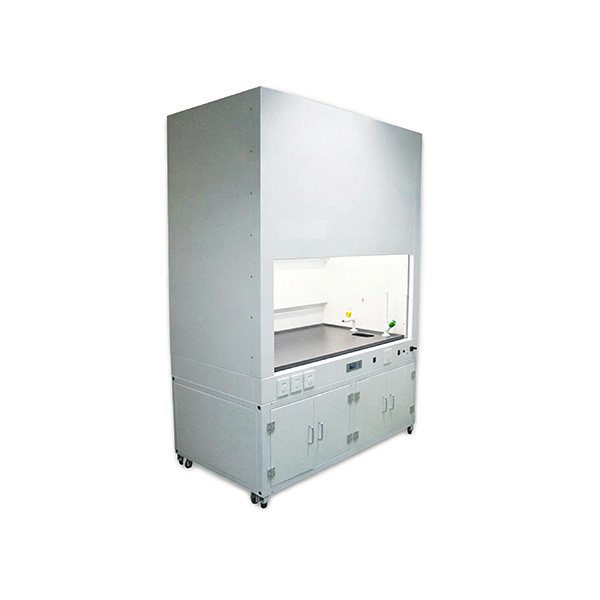

Laboratory Safety Chemical Fume Hood Vertical
Application:
FH series Fume hoods are the first defense to minimize chemical exposure to research workers. They are considered the primary means of protection from inhalation of hazardous vapors.
Production Description
UV lamp. Sterilize the working area.
LCD display screen. See the air velocity directly.
The pan is inside. Easy to install, save time.
The air velocity is adjustable ( 6 levels )
Electrical controlled glass.
Removable work surface. Easy to clean.

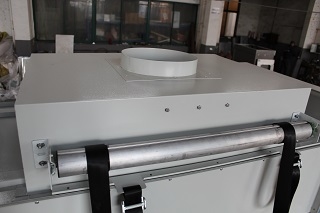

back

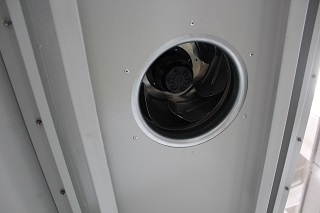

top blower
Our Advantage
High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience
Certificate
CE SGS
Model | FH7-1000 | FH7-1200 | FH7-1500 | FH7-1800 |
Exterior Size(L×W×H) | 1000×750×2200 | 1200×800×2200 | 1500×800×2200 | 1800×800×2200 |
Work Area (L×W×H) | 820×620×750 | 1020×670×750 | 1320×670×750 | 1620×670×750 |
Base Cabinet | Height is 620 mm, the exterior size include the cabinet height | |||
(Optional) | ||||
Protection Class | Class I | |||
Protection Type | IP 20 | |||
Air Velocity (m/s) | ≥0.5m/s | |||
Noise | ≤60dB(A) | |||
Pipe Collar | φ290 | φ290 | Φ290 | Φ290 |
Pipe Strap | 1pc | 1 pc | 1pc | 1pc |
Fluorescent Lamp | 15W×1 | 21W×1 | 28W×1 | 36W×1 |
UV Lamp | 20W×1 | 21W×1 | 30W×1 | 30W×1 |
Exhaust Duct | PVC, standard length: 4 meters | |||
Blower | Centrifugal fan, speed adjustable. The fan inside the Fume Hood | |||
Glass window | Two layer toughen glass, 5mm thickness; Motor control, height adjustable | |||
Power supply | 110-220V/50-60Hz(optional) | |||
Power consumption | 800W-1400W | |||
Standard Accessory | Water tap: One | |||
Water cup: one | ||||
Gas tap: two | ||||
Air tap: one | ||||
Water proof socket: two | ||||
Material | Exterior body : Cold-roll steel sheets, coated with any-bacteria power | |||
| Interior: Adopts high grade melamine board with good acid and alkali resistance function | ||||
| Interior: Adopts high grade melamine board with good acid and alkali resistance function | ||||
Optional Accessory | Filter: 1.HEPA filter 2. Carbon active Filter 3. Chemical Filter | |||
Net Weight(kg) | 200 | 230 | 280 | 330 |
