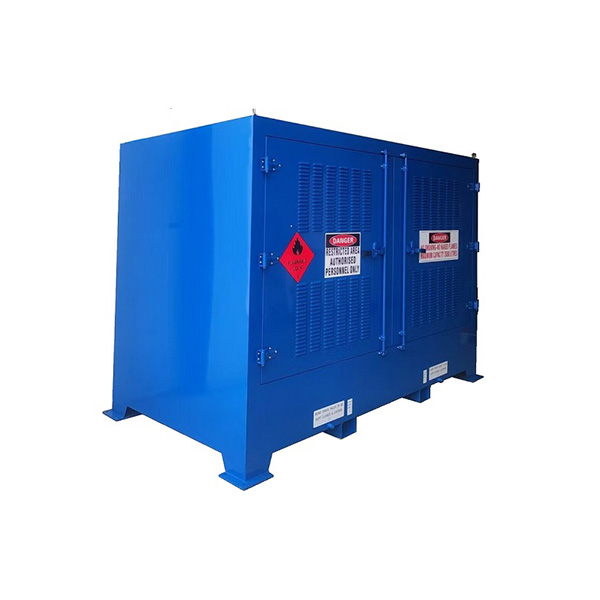

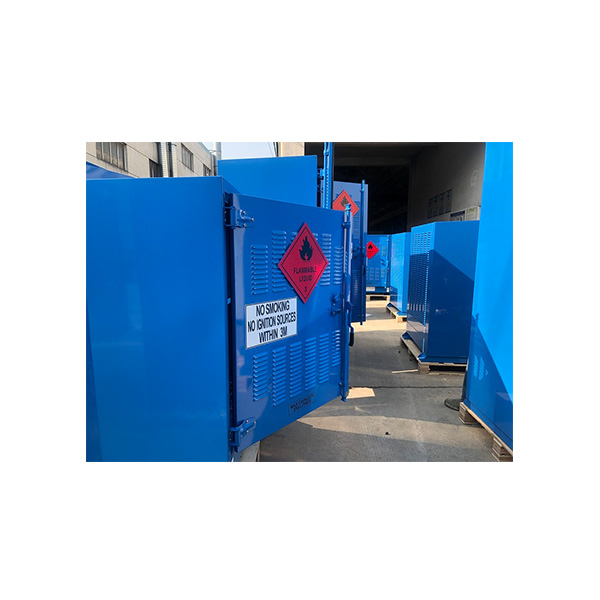

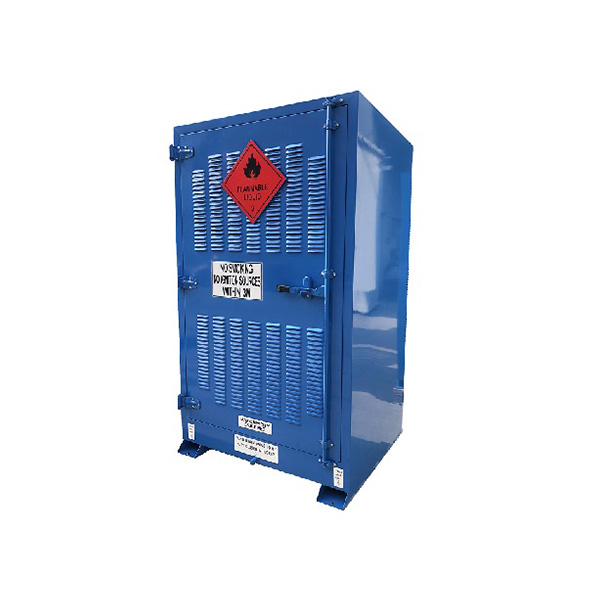

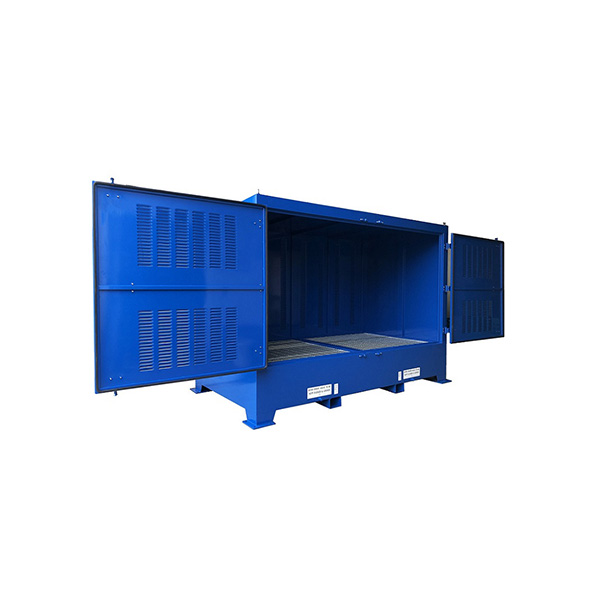

Outdoor Dangerous Goods Stores for drums and IBCs for Australia, Dubai, Europe, Malaysia, IndiaSafely and securely store from 1000L to 32000L in this Australian made outdoor dangerous goods storage
Outdoor Dangerous Goods Stores for drums and IBCs for Australia, Dubai, Europe, Malaysia, India
Safely and securely store from 1000L to 32000L in this Australian made outdoor dangerous goods storage unit.
Applications:
Available in a variety of styles to accommodate different substances including flammable, corrosive, toxic or oxidizing agents. Simply select your dangerous goods Class requirements from the dropdown menu above.
Safety equipment to store, transfer, use, and dispose of hazardous materials.
Main Specifications of 1000L-32000L Chemical Storage Stores
Store up to 32000L of flammable liquids / corrosive substances / toxic substances / oxidising agents / organic peroxides.
Suitable for storing 205L drums or 1000-litre IBCs.
Eliminate the cost and time required to build a permanent outdoor dangerous goods store.
Manufactured with a rear-sloping roof with gutter for rainwater run-off.
Heavy duty fabricated galvanised steel construction.
This outdoor dangerous goods store can be easily moved and transported to another site.
Full width forklift type pockets allows access from both sides.
Safety and warning signage applied in accordance with Australian Standards.

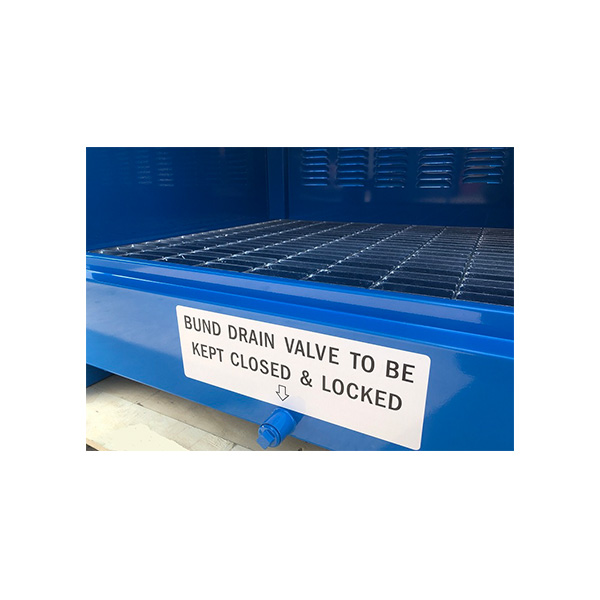

Includes an integral spill containment bund which is compliant with Australian Standards and includes an externally-accessible drain.
Includes a welded earth lug and earth stake (supplied loose for site installation).

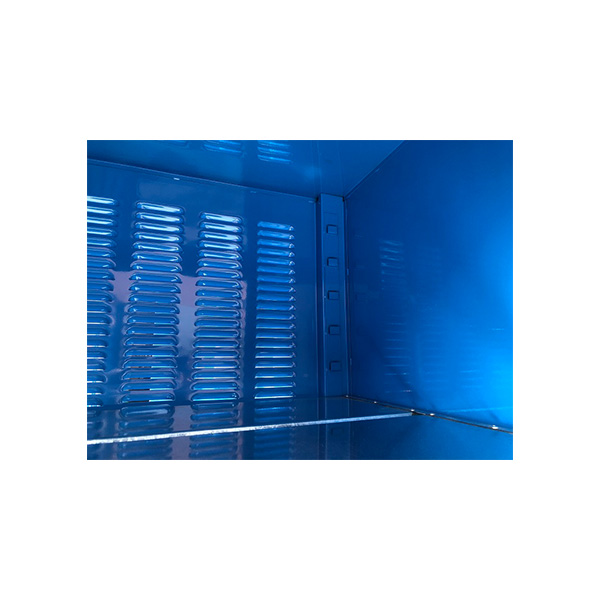

This outdoor DG store is ventilated in accordance with Australian Standards.
Storage within this outdoor dangerous goods store is above the sump not in it.
Finished in high build 2-pack epoxy primer and semi-gloss 2-pack polyurethane blue topcoat, for a total dry film build in excess of 200 microns and in accordance with AS 2312.1-2014.
Tie down lugs are included on each side. Certified lifting lugs can be supplied upon request.
Market Segments
Charter Schools
Higher Education - University, Colleges
ood Beverage facilities
Life Science
Bio-Technology
Industrial Research & Development
Medical research
Water treatment Plants
To convert gallons to liters, multiply gallons x 3.78541
Our Advantage
High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience
Instroduction
SUPER CO LTD offers a full line of Outdoor Dangerous Goods Stores, Chemical storage containers, Hazmat storage cage, Flammable storage containers, Paint &Ink Storage cabinets, Oxidising storage lockers, Toxic Substances Stores, Organic Peroxides cages, cleanroom-safe polypropylene cabinets for today's most demanding manufacturing and laboratory environments.
Each product stands up to the most stringent cleanroom / safety requirements.
Now you can have years of clean, safe storage of your hazardous acid / corrosive chemicals and materials with out the rusting due to metal construction or the delaminating of wood core products.
containment base area to provide a 100% liquid-tight safe environment.
Custom designs and sizes are available.
| Model | Volume (L) | Shelf | Ext dimension (L x W x H)mm | Loading Capacity | door | N.W. (Kg) | LUGS |
| ODG850 | 850 | 1+base | 1545 x 1445 x 1700mm | 4 x 205L | 1 | 375 | 2 |
| ODG1000 | 1000 | 1+base | 1545 x 1445 x 2208mm | 5 x 205L or 2 x 1000L | 1 | 430 | 2 |
| ODG2000 | 2000 | 1+base | 2795 x 1445 x 1935mm | 8 x 205L or 8 x 1000L | 1 | 540 | 2 |
| ODG4000 | 4000 | 1+base | 2795 x 1445 x 3446mm | 16 x 205L or 4 x 1000L | 2 | 980 | 4 |
| ODG6000 | 6000 | 1+base | 4115 x 1445 x 3335mm | 24 x 205L or 6 x 1000L | 3 | 1180 | 4 |
| ODG8000 | 8000 | 1+base | 5365 x 1445 x 3335mm | 32 x 205L or 8 x 1000L | 4 | 1400 | 4 |
| ODG1000 | 10000 | 1+base | 5365 x 1445 x 3335mm | 32 x 205L or 10 x 1000L | 4 | 1700 | 4 |
| ODG12000 | 12000 | 1+base | 8000 x 1445 x 3335mm | 40 x 205L or 12 x 1000L | 6 | 2000 | 4 |
| ODG16000 | 16000 | 1+base | 10600 x 1445 x 3335mm | 56 x 205L or 16 x 1000L | 8 | 2710 | 4 |
| ODG16000 | 16000 | 1+base | 5360 x 2520 x 3295mm | 56 x 205L or 16 x 1000L | 4 | 4200 | 4 |
| ODG32000 | 32000 | 1+base | 10600 x 2520 x 3295mm | 112 x 205L or 32 x 1000L | 6 | 6200 | 4 |
